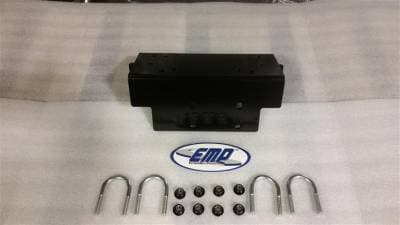

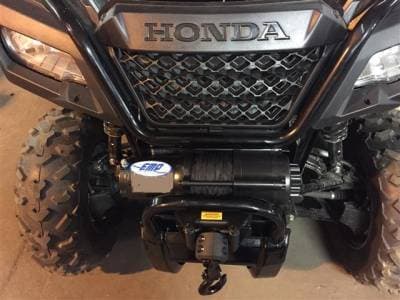

Honda Pioneer 500 Winch Mounting Plate
Fits: 2015-2023 Pioneer 500 and 2021-2023 Pioneer 520
P/N: EMP-13079

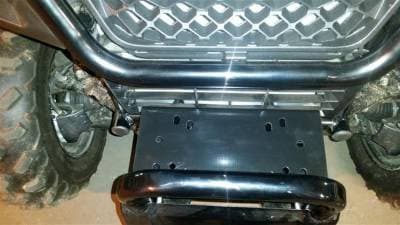

- Mounts to stock front bumper.
- Laser Cut and CNC formed.
- Made from 3/16” Thick American Steel.
- Powder Coated-Black.
- Accepts most UTV winches up to 4000 lbs.
- Has two bolt patterns (3" deep x 4-7/8" wide and 3" deep x 6-4/8" wide).
- Made In Cleveland, Ohio.
Accepts all most regular and wide spool UTV winches. It has two bolt a patterns; 3” deep x 4-7/8” wide and 3” deep x 6-5/8” wide). No drilling or cutting required.
- Accepts most winches up to 4000 lbs.
- Viper Elite 3500
- Viper Elite 4000
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: RT40 / XT40
- WARN: Vantage 2000-4000lb
- WARN: Vantage 2000-4000lb
- WARN: ProVantage 2500-4500lbs
- ATV2500 / ATV3000
- Terra25 / Terra35 / Terra 45 / LT2000 / LT2500 / LT3000
- MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND : 2000lb #68146 - Requires the correct Fairlead with a 4.875" Bolt Pattern (available if needed EMP P/N: 10906) - Listed Models come with incorrect ATV Roller Fairleads
- BADLAND : 3000lb #68145 / 5000lb #68144
- CHAMPION : C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 13501(reqires rollers) / 14061
- CHAMPION : 14501 / 14551 / 14552 / 40252 (4500lbs)
- CHAMPION : 10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145 - Requires the correct Fairlead with a 4.875" Bolt Pattern (available if needed EMP P/N: 10906) - Listed Models come with incorrect ATV Roller Fairleads
- CHAMPION: 14001 and 14061
- KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KEEPER CORP. TRAKKER : KT2000 - Requires purchase of a roller Fairlead (EMP P/N: 10906)
- SMITTYBILT : XRC 2.0 - Requires the correct Fairlead with a 4.875" Bolt Pattern (available if needed EMP P/N: 10906) - Listed Models come with incorrect ATV Roller Fairleads
- SMITTYBILT : XRC 3.0
- XGEAR: X3000 / X4000 - 4-Hole Standard (3.00" x 4.875" bolt pattern)
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series) - All with 3.00" x 4.875" Bolt Pattern mount-up - All with 3.00" x 6.600" Bolt Pattern mount-up
- Possibly Many others with the below standard Mounting patterns - 4-Hole (3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern) - 4-Hole WIDE (3.00" x 6.60" bolt pattern with Rollers that are 6.600" or 6.000" bolt pattern) - 2-Hole (3.10" with Rollers that are 4.875" bolt pattern)
We reserve the right to make modifications/improvements to our products at any time. Vehicles may have changes throughout the year. Therefore, pictures are a representation of the product you will be getting but may vary due to product revisions.
