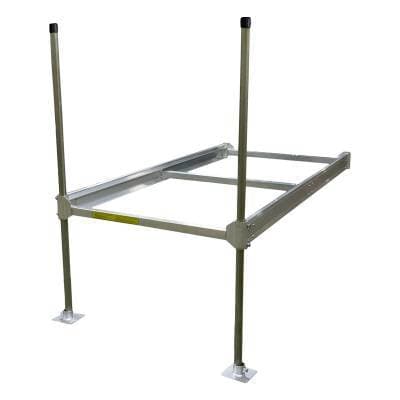

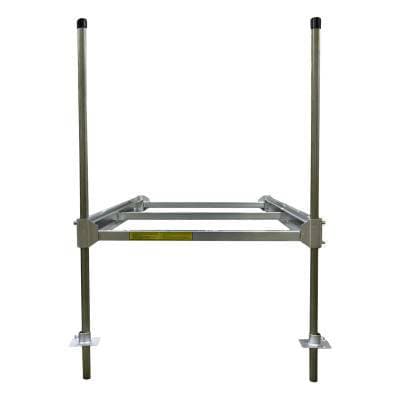

DIY aluminum docks are ideal for most lakes and shorelines. Lightweight frame with galvanized posts includes everything you need to complete the dock frame: aluminum frame, posts/poles/pipes, bottom plates and hardware. Steel supports provide heavy duty stability and cross bracing. Dock kits can accommodate any wood, composite or metal decking suitable to your requirements. Decking thickness should be within .75" and .98" (19mm and 25mm). We recommend 5/4" x 6" x 16' Cedar Planks for their natural rot resistance. Each dock kit requires quantity 10, 8 foot planks to fully cover the dock surface.
Dock Boards / Planks Not Included.
KIT CONTENTS:
Dock Sides - qty 2
Dock Center Brace - qty 1
Dock End Pieces - qty 2

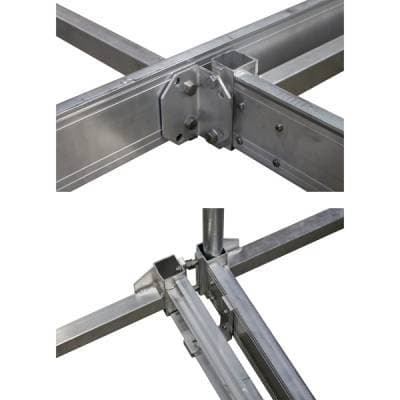

Triangular Joining Plates - qty 2
L Bracket - qty 1
Right-Angle Adapter - qty 1
Galvanized Posts, 6 ft length - qty 2
Bottom/Base Plates - qty 2
Vinyl Post Cover - qty 2
Hardware
Installation Instructions
FEATURES:
Maintenance-free, no-rust aluminum, lightweight frame
Three (3) cross bars provide stability and robust system when fully assembled with dock boards
Highly modular - bolt together multiple kits for endless layouts for all applications
Heavy-duty, galvanized steel posts/pipes
Large foot pad (6" x 6")

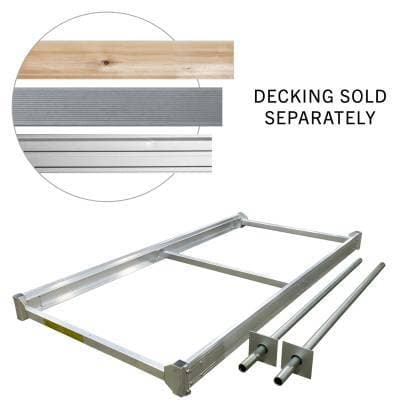

Please Note: decking not included (for purchase separately)
Please Note: Some drilling may be required for some configurations
